Samsung OH55F 139.7 cm (55") LCD Digital Signage Display

  • Part: 3930275
  • Model: LH55OHFPVBC/XY
$11,040.00 Ex Tax

Availability

Out of Stock

Bulk Pricing

Quantity Price
5 - 9 $10,829.00 Ex Tax
10+ $10,613.00 Ex Tax

A powerful all-inclusive outdoor signage solution featuring an embedded power box

  • All-in-one solution complete with an embedded power box, along with an ultra-slim depth of 85mm
  • An optimum level of endurance equivalent to IK10 and extra durability with IP56 Ingress Protection
  • A filterless self-cooling system enabling easy maintenance and reduced TCO
  • Excellent visibility under direct sunlight through 2,500-nit high brightness and anti-reflection glass
  • An advanced content management solution via SSSP 4.0 powered by TIZEN

Features

Outdoor signage with simplified installation and upkeep, plus an all-encompassing array of pre-assembled features

OHF Series is conveniently and easily installed, designed and operated with a thin, all-in-one solution, which comes in a package which includes ingress protection, anti-reflection technology, an embedded power box, vandalism protection and a highly efficient cooling system. In addition, the embedded power box helps to condense operational components to the point where an ultra slim depth of 85mm can be attained, while the functionality of embedded network hub allow for simple connection and easy installation.

Robust IK10 level of endurance against external impacts

Advanced display protection is provided through the 5 mm (0.19 in.) tempered Magic Glass featuring durability that is IK10-certified (European strength test), further referencing its robust level of strength that can endure external impacts. In addition, a gap between the Magic Glass and the LCD panel prevents LCD breakage when the protection glass is broken.
IK rating refers to the degree of resistance against external impacts on a scale of 0 to 10, where 10 indicates the highest level of protection.

Possessing a self-cooling system with no need for filter or maintenance

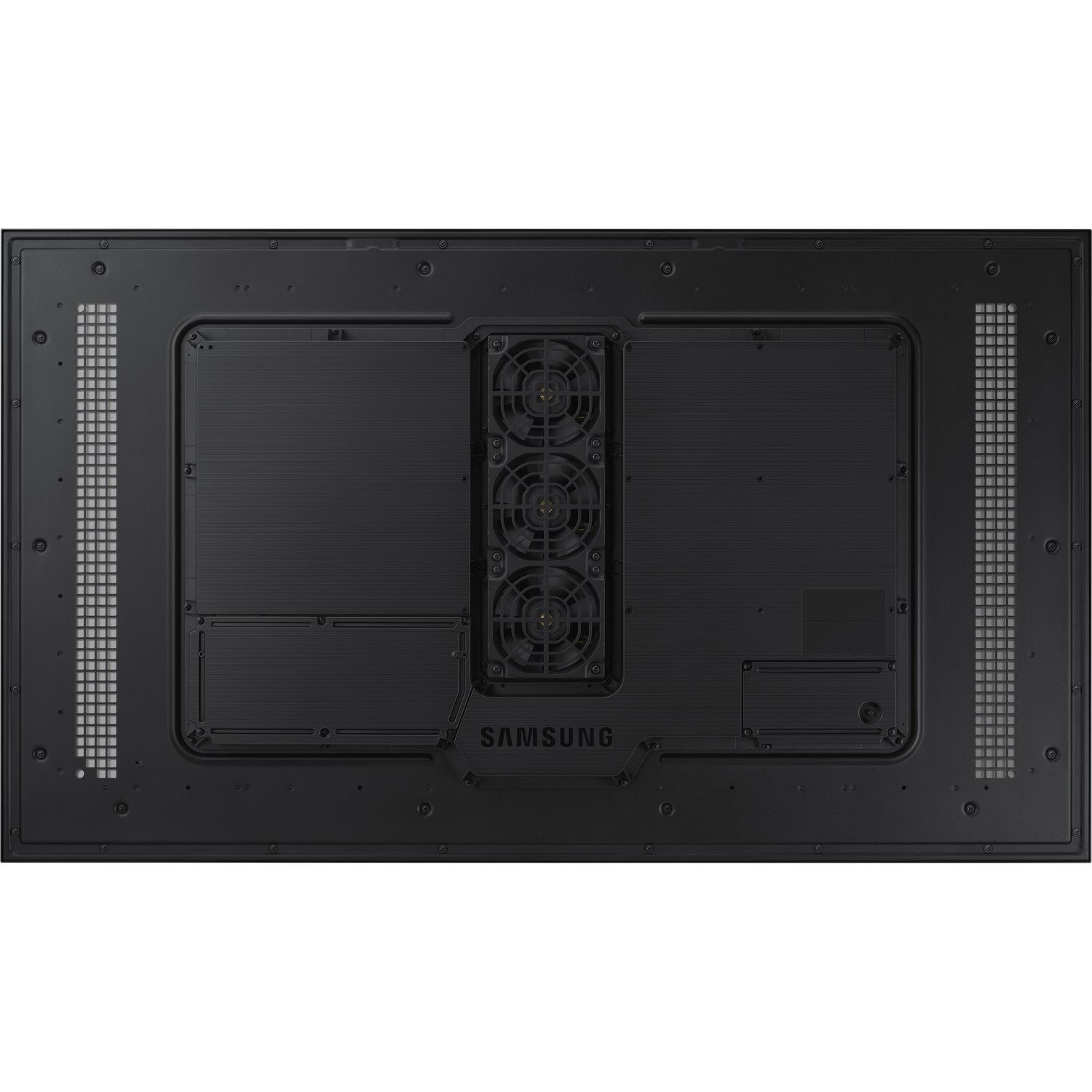

Samsung's OHF Series comes complete with an advanced cooling system with heat exchanger, supported by advanced thermal control functionality. This enhances the overall efficiency in terms of both management and cost through its filter-less system. The system revolutionizes outdoor signage design, abandoning the thick enclosures to accommodate a full display package.

Captivate audiences with excellent visibility

High Visibility
OHF Series displays feature innovative Magic Glass, TUV Certified Image Quality and an Auto Brightness Sensor to optimize brightness in order to optimally convey messaging to virtually any viewer. These powerful displays also feature circular polarizing technology that eliminates display blindness caused by polarized sunglasses. OHF Series captivate viewers with superior messaging clarity delivered with high 2,500 nit brightness and 5,000:1 high contrast ratio.

Reflection Prevention
Greater content visibility is achieved under a combination of high brightness, lower reflection and high contrast ratio. The Magic Glass of the OHF Series that is in front of the displays' LCD panels removes the protection glass reflection, making the displayed images richer and clearer under direct sunlight.

  • General Information
    • Manufacturer
    • Samsung
    • Manufacturer Part Number
    • LH55OHFPVBC/XY
    • Manufacturer Website Address
    • http://www.samsung.com/au
    • Brand Name
    • Samsung
    • Product Series
    • OHF
    • Product Model
    • OH55F
    • Product Name
    • OH55F Digital Signage Display
    • Product Type
    • Digital Signage Display
  • Technical Information
    • Bezel Width
    • 24.90 mm
  • Processor & Chipset
    • Processor Type
    • Cortex A12
    • Processor Speed
    • 1.30 GHz
    • Processor Core
    • Quad-core (4 Core)
  • Memory
    • Standard Memory
    • 2.50 GB
  • Display & Graphics
    • Screen Size
    • 139.7 cm (55")
    • Display Screen Type
    • LCD
    • Display Resolution
    • 1920 x 1080
    • Pixel Pitch
    • 0.63 mm
    • Backlight Technology
    • LED
  • Video
    • Scan Format
    • 1080p
    • Dynamic Contrast Ratio
    • 100,000:1
    • Colour Depth
    • 8-bit
    • Brightness
    • 2500 cd/m²
    • Color Gamut
    • 72%
  • Network & Communication
    • Ethernet
    • Yes
  • Interfaces/Ports
    • USB
    • Yes
    • HDMI
    • Yes
    • Serial
    • Yes
    • Number of HDMI Inputs
    • 2
  • Software
    • Operating System
    • Tizen 2.4
  • Power Description
    • Input Voltage
    • 120 V AC
    • 230 V AC
  • Physical Characteristics
    • Height
    • 73.1 cm
    • Width
    • 126.1 cm
    • Depth
    • 8.5 cm
    • Weight (Approximate)
    • 46.10 kg
  • Miscellaneous
    • Environmentally Friendly
    • Yes
